17系列磁悬浮位移传感器是专为液压缸而设计。耐压外管与六角法兰为100%不锈钢,可以直接安装进液压缸里。电子部份与耐压外管为模块组装设计,即两者可完全分离。在特殊情况下,只需拨出电子部份进行校淮,而耐压外管无需与液压缸分离。此设计减少重置液压缸时间,大大提高生产效率。
电子部份为IP65等级,使电子模块受到最佳的抗震,防尘和防潮保护。输出连接为业界常用的油制插头(DIN 43650),既方便又容易接线。除了适合液压系统外,也同样适合机械外置安装。在无需定期维护情况下,提供绝对和准确的重复输出。

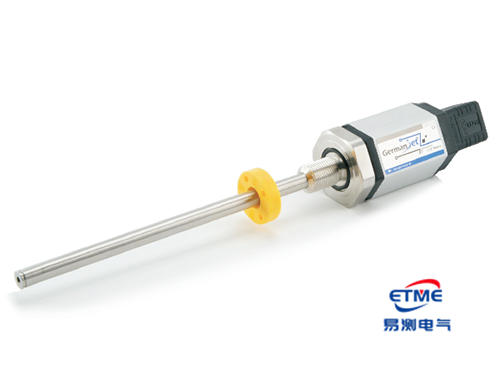

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily. In some instance, if the transducer needs to be re-calibrated, the hydraulic body no need to be detached from the hydraulic cylinder. This modular design can greatly reduce the cylinder reset time and improve efficiency.
The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector (DIN 43650) is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.
