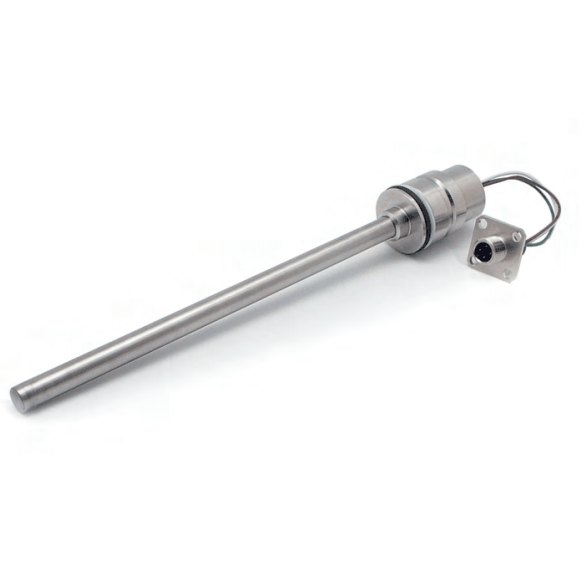

Series 13C compact voltage output magnetostrictive displacement sensor
Compact mobile hydraulic, voltage output 0.1-4.9V, IP68/IP69K
The 13C is the compact voltage output model in Series 13, with an output range of 0.1-4.9 V, +5 Vdc or 12 Vdc dual supply and low power consumption of only 40 mA. It is designed for mobile hydraulic position detection where installation space, power consumption and cost are critical. It has an M12 4-pin waterproof socket, IP68 protection (IP69K with a dedicated M12 connector), vibration resistance 25 g and shock resistance 100 g.
Product Overview
13C is the compact voltage output model in Series 13, focused on miniaturisation, low power consumption and excellent price/performance. The output range is 0.1-4.9 V, compatible with the input interfaces of most industrial analog acquisition cards and mobile equipment control units.
A dual +5 Vdc or 12 Vdc supply design adapts flexibly to on-board 12 V systems and 5 V industrial bus systems, with no additional voltage conversion module required.
The low 40 mA power consumption reduces the load on the system power supply, making it particularly suitable for battery-powered operation or multiple sensors on a common line. IP68 protection (up to IP69K with an M12 connector) guarantees reliable operation under extreme conditions such as high-pressure washing, heavy rain and mud.
25 g vibration resistance (10-2000 Hz band) and 100 g shock resistance, with a precision cast stainless steel housing - a perfect match for the severe vibration of construction machinery and harsh outdoor conditions.
Operating Principle
The 13C uses the same non-contact magnetostrictive measurement principle as Series 13: the current pulse in the waveguide superimposes with the external magnet field to generate a strain wave, and the electronics module calculates absolute position from the arrival time difference of the strain wave. What makes the 13C special is its extremely simple voltage output interface (0.1-4.9 V) and ultra-low power design (40 mA), suiting mobile equipment with tight space and limited battery or bus power.
Typical Applications
Technical Specifications
| Measuring Range | 50 ~ 2500 mm |
|---|---|
| Resolution | <500mm ±0.10mm, 700mm ±0.18mm, 1000mm ±0.24mm, 1250mm ±0.30mm, 1750mm ±0.42mm |
| Repeatability | < ±0.005% of full scale |
| Non-Linearity | < ±0.04% of full scale (min. ±100 µm in the 60 mm damping zone); < ±0.08% (36.5 mm damping zone) |
| Output Signal | Analog voltage / current or CANopen / CAN J1939 (two interface options) |
| Supply Voltage | +12Vdc / +24Vdc |
| Input Protection | Reverse polarity protection to -30 Vdc, overvoltage protection to 36 Vdc |
| Power Consumption | 1W |
| Dielectric Strength | 500 Vdc (DC ground to machine ground) |
| Operating Temperature | -40 °C to +85 °C, 90% humidity, non-condensing |
| Protection Class | IP68 (up to IP69K with an M12x1 connector when installed in a hydraulic cylinder) |
| Vibration Resistance | 25g / 10~2000Hz（IEC 68-2-6） |
| Shock Resistance | 100 g single shock (IEC 68-2-27) |
| EMC Compliance | Emission EN 61000-6-3, immunity EN 61000-6-2, EN 61000-4-2/3/4/6/8 |
| Pressure Rating | 300 bar / 400 bar peak (analog version); 350 bar / 530 bar peak (CANopen version) |
| Housing Material | Precision cast stainless steel |
| Connector | M12 4-pin A-coded (analog) / M12 5-pin A-coded (CANopen), IP69K waterproof |
Models and Output Signals
Dimensions and Wiring Diagrams
13C analog (voltage / current) output technical specification table
13C analog output version specifications: measuring range 50~2500 mm, resolution graded by range, repeatability < ±0.005% FS, IP68 / IP69K protection, pressure rating 300 / 400 bar.
13C analog wiring diagram (4-pin M12 A-coded)
13C analog wiring diagram: 4-pin M12 A-coded waterproof socket with N__E / N__G / N__H / T__A pin assignment, +12 V / +24 V dual supply.
13C CANopen output technical specification table
13C CANopen / CAN J1939 bus version specifications: 1 W power consumption, pressure rating 350 / 530 bar, M12 5-pin A-coded connector, EMC compliant with the EN 61000-6 series.
13C CANopen wiring diagram (5-pin M12 A-coded)
13C CANopen wiring diagram: 5-pin M12 A-coded socket with N__F pin assignment, fitted with an IP69K waterproof M12x1 connector.
13C installation dimensions and mounting diagram
13C installation dimensions and hydraulic cylinder cross-section mounting diagram: minimum 13.5 mm bore for the magnet ring, ≥ 3 mm clearance at the sensor end, and no radial bending moment.
Installation Precautions
- Fix the position magnet with a non-ferromagnetic circlip; ferromagnetic materials will affect measuring accuracy.
- For the 10 mm diameter sensing rod, the minimum bore diameter should be 13.5 mm to ensure adequate installation clearance.
- Keep a clearance of at least 3 mm between the end of the sensing rod and the bottom of the bore to prevent mechanical impact damage to the sensing element.
- Intended for mobile hydraulic equipment. The mounting surface must be flat and parallel to the cylinder axis so that no extra bending moment is applied to the sensor.
- With a +5 Vdc supply the output is 0.1-4.9 V; with a +12 Vdc supply the output range is scaled proportionally. Wire according to the supply type confirmed at the time of order.
- This series is rated as high as IP68 to IP69K and withstands high-pressure washing and brief immersion, but the electrical connectors must still be tightened and sealed according to specification.
Pricing Notes
The 13C compact voltage output version is priced below the 13M analog / bus models, making it the economical choice for budget-sensitive mobile hydraulic applications. The price depends on the measuring range, mechanical interface and cable length.
