Magnetostrictive Displacement Sensors
Six series for general purpose, mobile hydraulics, rod-style, cylinder-integrated, profile and process duties — analog through EtherCAT, including high-pressure and explosion-proof options. Contact us for selection support in China.
Product Series Overview
Series 12 General-Purpose
Compact general-purpose type with analog voltage / Start-Stop output
The Series 12 general-purpose magnetostrictive displacement sensor is a compact position sensing…
View Product
Series 13 Mobile Hydraulic
Mobile hydraulic, IP68→IP69K, shock/vibration resistant, CANopen optional
Series 13 is optimised for mobile machinery and mobile hydraulics. Its compact form factor…
View Product
Series 13C Compact Voltage Output
Compact mobile hydraulic, voltage output 0.1-4.9V, IP68/IP69K
The 13C is the compact voltage output model in Series 13, with an output range of 0.1-4.9 V, +5 Vdc…
View Product
Series 13R Redundant Output Mobile Hydraulic
Dual redundant output for safety-critical mobile hydraulic applications
Series 13R is the redundant output version of Series 13, with two fully independent measuring…
View Product
Series 16 Hydraulic Cylinder Built-in
Flat housing · 160 voltage / 161 current / 162 SSI
Series 16 is built into U-clevis and radially tight hydraulic cylinders. The flat electronics…
View Product
Series 16R Redundant Design Built-in
Dual independent measurement channels for safety-critical applications
Series 16R adds redundant safety design on top of Series 16 - a dual-channel redundant…
View Product
Series 16T Triple Redundant
Triple independent measurement systems for ultimate safety - ship propulsion, power plants, train tilt
Series 16T adds triple redundant safety design on top of Series 16 - three fully independent…
View Product
Series 16E Harsh Environment
IP68 fully enclosed for extreme harsh environments with high contamination and dust
Series 16E is designed for extremely harsh environments - heavy contamination, dust, salt spray,…
View Product
Series 17 Hydraulic Cylinder Integrated
Integrated into hydraulic cylinder, modular electronics, DIN 43650 connector
Series 17 is Germanjet's flagship product line, engineered for integration into hydraulic…
View Product
Series 17EX Intrinsically Safe Explosion-proof
ATEX/CNEX certified intrinsically safe for hazardous areas
The Series 17EX intrinsically safe explosion-proof magnetostrictive displacement sensor is…
View Product
Series 18 External
External rod/slider/built-in types with analog & Start-Stop output
The Series 18 external magnetostrictive displacement sensor uses non-contact magnetostrictive…
View Product

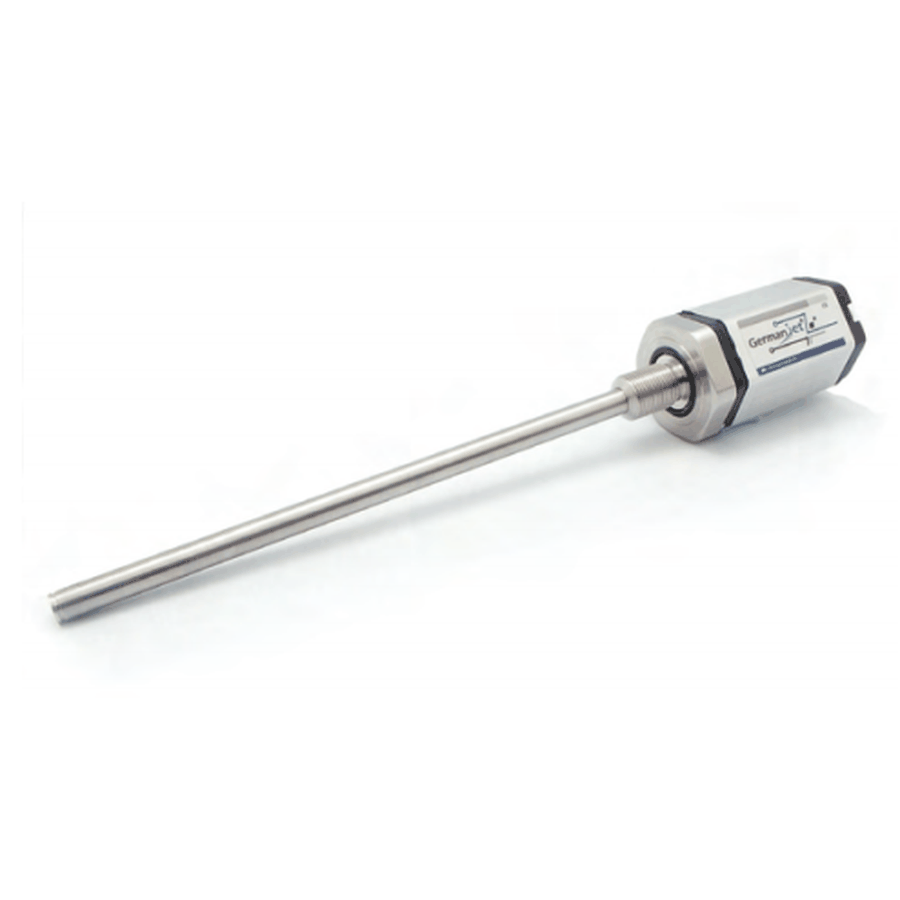

Series 19 Analog
Analog voltage/current output, 6-pin D60 male connector, 16-bit D/A
The Series 19 analog version provides standard industrial analog output of 0-10 V voltage or 4-20…
View Product
Series 19 SSI Digital Interface
SSI synchronous serial output, D70 7-pin connector
The Series 19 SSI version (order code 192) uses an SSI synchronous serial interface to output…
View Product
Series 19 CANopen Bus
CANopen DS-301 V3.0, 6-pin D60, 20–1000 kbit/s
The Series 19 CANopen version is based on the CAN 2.0A/2.0B physical layer and the CANopen CIA…
View Product

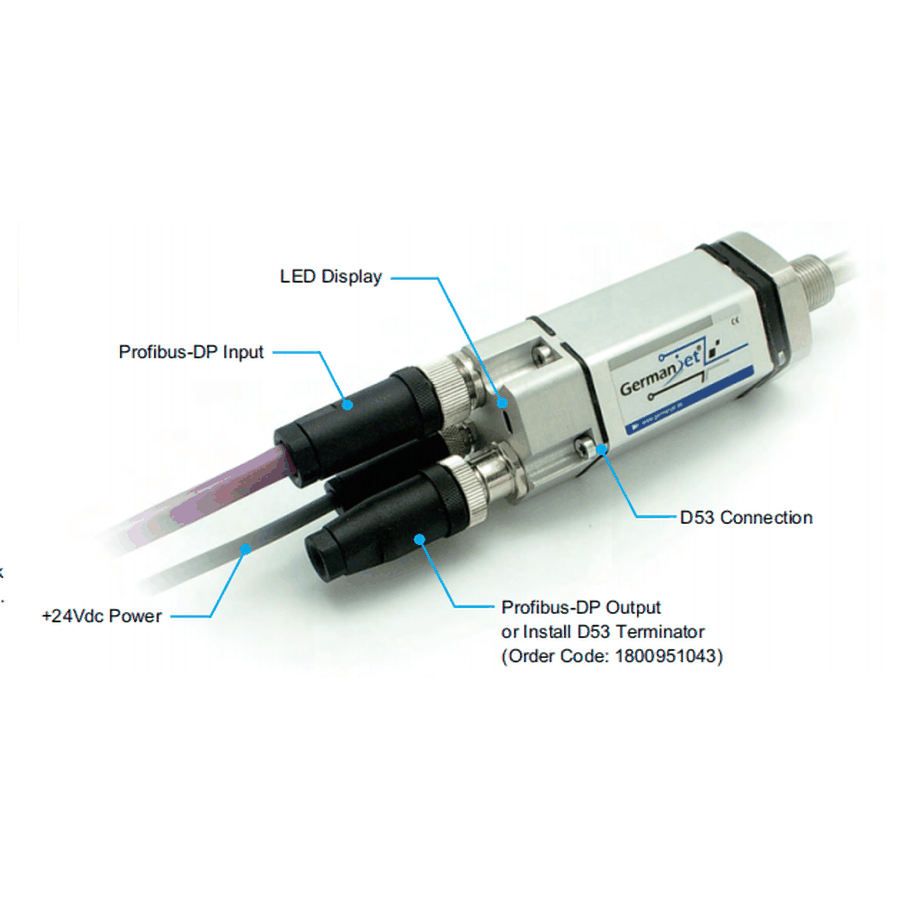

Series 19 Profibus Bus
Profibus-DP (EN 50 170), D53, up to 12 Mbit/s
The Series 19 Profibus version supports the Profibus-DP (EN 50 170) fieldbus protocol based on the…
View Product
Series 19 EtherCAT Bus
EtherCAT slave, distributed clock sync, ESI file
The Series 19 EtherCAT version connects to industrial Ethernet as an EtherCAT slave and supports…
View Product
Series 198 EtherCAT with a Single M12 Interface
EtherCAT slave, single M12 8-pin connector, ESI file
The Series 198 EtherCAT version is networked via a single 8-pin M12 connector and connects to…
View Product

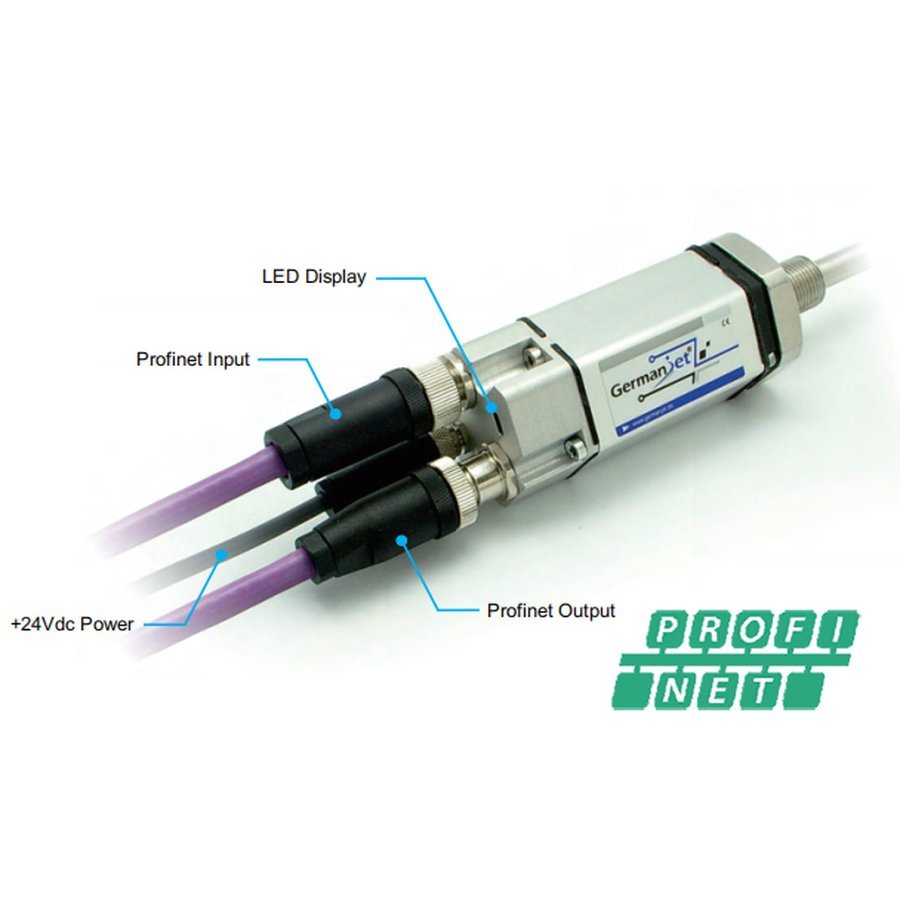

Series 19 Profinet Bus
Profinet RT/IRT v2.3, Encoder Profile 4.1, D56+M8 connectors
The Series 199 Profinet version uses the Profinet RT/IRT industrial Ethernet protocol (version 2.3)…
View Product
Series 19 D-Type Split
Split design with separate sensor head and waveguide tube
The D-type split design completely separates the sensor head (electronics housing) from the…
View Product
Series 19 H-Type Built-in Cylinder
Built directly into hydraulic cylinder body
The H type is designed for fully built-in installation in hydraulic cylinders. The pressure tube…
View Product
Series 19 P-Type External
External rod type with aluminium profile housing, long stroke capable
The P-type external version is the most versatile form in Series 19, using an aluminium profile…
View Product
Series 19F Flexible Long-stroke
Optimised for ultra-long stroke with flexible waveguide tube
Series 19F is optimised for very long stroke applications, using an innovative structure in which…
View Product
Custom Engineering Service
Based on the full Series 12 / 13 / 16 / 17 / 18 / 19 range, we tailor measuring range, interface, mounting method and ingress protection to your operating conditions.
